DATAFLOW software tools
With our DATAFLOW software tools you can develop embedded systems and firmware in a structured and efficient way. Tested in multiple customer projects by IMT, these tools greatly accelerate the development process and improve the quality. We continue to enhance functionalities of these tools and will be happy to consult you on their deployment.

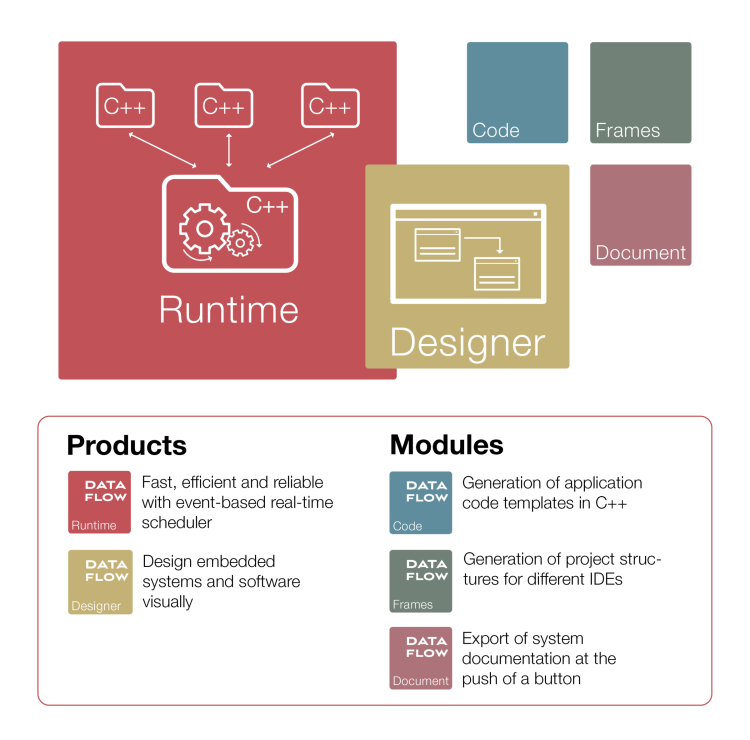

DATAFLOW Runtime is a smart, event-based operating system that guarantees the best real-time performance as well as conflict-free data and process communication. This enables efficient, high-performance and resource-saving embedded software applications to be created. DATAFLOW Runtime is resource-optimized, robust, reliable and “ready to use” for your critical applications.
The DATAFLOW Designer enables system and software architecture design with seamless documentation and automatic code generation capabilities. It applies model-based system design approach to define hardware and software interfaces, breakdown the system into subsystems and ensures consistent interfaces across all system levels.
Our DATAFLOW modules extend the Designer and offer a number of helpful functions: DATAFLOW Code reduces development time and eliminates sources of errors, DATAFLOW Frames generates the project structure for various IDEs and thus facilitates maintainability, while DATAFLOW Document provides up-to-date system documentation at the push of a button.
We thus offer you a complete suite for the development, documentation and maintenance of your embedded software applications.
Advantages with DATAFLOW software tools
Quality optimization
up to
50%
less effort for quality assurance measures
- Code reviews
- Documentation review
- Architecture review
- Verification and validation
Cost savings
up to
60%
lower initial development costs due to elimination of boiler plate code
- HAL implementation included in integration package
- Infrastructure (timers, events, ...) integrated in runtime
- Unit tests for interfaces and structure available
Time saving
2 Months
earlier with the developlemt of application logic.
More time for...
- New features
- Innovations
- additional products
Good & fast maintainability
up to
50%
more efficient in further developments due to fast adaptation
- of the architecture
- the documentation
- of the source code
Improved documentation
almost
0 inconsistency
no inconsistency between code and documentation
- less effort for documentation creation
- Documentation grows automatically with development
Easier communication
up to
70%
of necessary documents available at the push of a button
- simple models for communication between interdisciplinary teams
- no collecting of different documentation elements
Properties of DATAFLOW software tools
- Minimal footprint thanks to configurable resource requirements
- Minimal CPU load through run-to-completion task processing
- Energy-saving thanks to the go-to-sleep function and wake-up interrupt
- Bare metal or RTOS based
- Hardware abstraction layer for many platforms
- Simulation and unit test of the application without a target system
- Currently supported platforms
- ARM CORTEX M0 / M3 / M7 / A8
- Hardware Abstraction Layer for STM32 F103 / F030 / F767
- WIN32 (for unit tests)
- Other platforms on request
- Detailed documentation with extensive examples
- We support you in choosing the right modules (HAL, BSP)
- We support with the setup of the development environment
DATAFLOW Designer
Model-based system design
- Define the system context, break down the system into subsystems
- Define hardware and software interfaces
- Ensure consistent interfaces across all levels
Efficient software engineering
- Data-flow-based event architecture
- Automatic project generation for different IDEs
- Interface protocol and data flow definition
- Validation of software architecture
- Hardware-specific boilerplate code generation
- Source code editor
Automated implementation
- Validation of the software design model
- Automatic creation of IDE-specific project files and settings
- Automatic generation of the source code structure for software elements and interfaces
- Automatic creation of unit test projects
Consistent documentation
- Chart export
- Export of system design and software architecture
- Linking of requirements and further information on hardware and software components
Systems implemented with DATAFLOW
Zünd - G3 Cutter - Digital Cutter
Zünd Systemtechnik AG uses DATAFLOW software to create the firmware for various modules of its digital cutting plotters. DATAFLOW Designer is used to define architecture and communication protocols. The code generated from a unified source, together with DATAFLOW Runtime, ensures that the connected modules communicate with each other without errors.
Vyaire - bellavista 1000 - Patient ventilator
The bellavista 1000 is a patient ventilator that is used for both invasive and non-invasive ventilation in intensive care units. The application ranges from premature babies to adults.
DATAFLOW Designer is used to define and document the software architectures and use them to generate the code framework for the ventilation controller. This integrates the firmware in safety class C for signal processing, actuator control and application logic. In addition to the program code, consistent documentation is automatically generated that always matches the real firmware.
Free demo version
Convince yourself of the advantages of the DATAFLOW Software and test our free 30-day demo version.
DATAFLOW - Knowledge base
Visit the DATAFLOW knowledge baseContact
Do you want to improve your embedded system design with smart, efficient and reliable DATAFLOW software tools? Contact us today.
